HAS HD-15 to SNES Multi AV Output

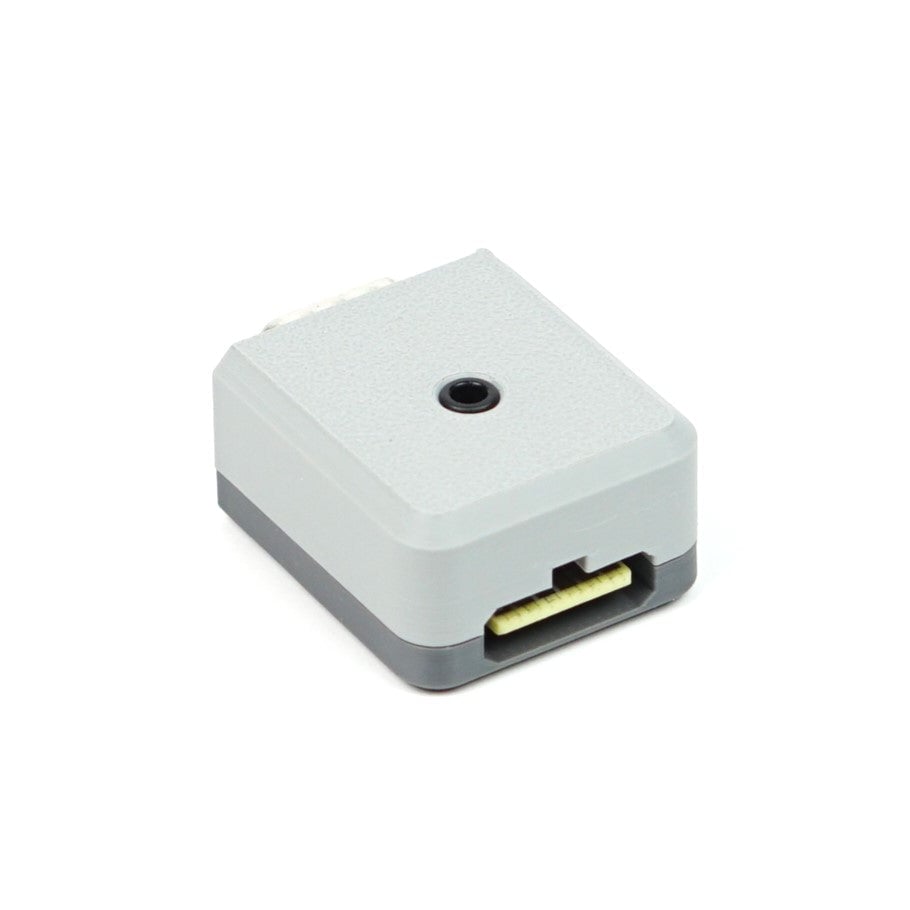

A simple HD-15 to SNES Multi AV Output adapter designed specifically for the HAS.

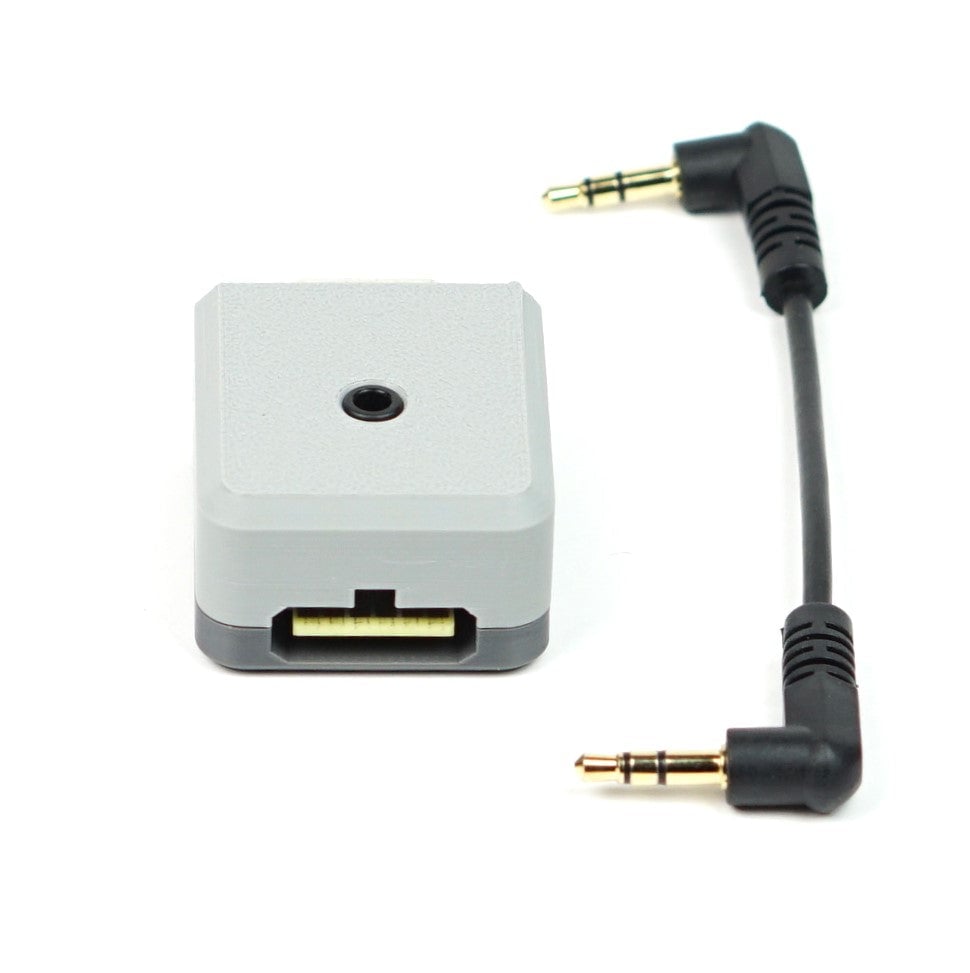

Comes with a 3D printed enclosure (0.1mm layer height for the best quality), and a short 3.5mm jack to 3.5mm jack cable for audio.

• Compatible with the SNES NTSC US/JP RGB Scart cables.
• Compatible with the third-party SNES plugs only, the official Nintendo-branded plug will not fit.
• It does not work with Composite Video, S-Video or Component Video cables.
• The adapter can be used in other applications, but due to the built-in THS7374 video buffer, it expects +5V on pin #9 of the HD-15 port to work. It requires 470R impedance CSync on pin #13 HD-15 port.

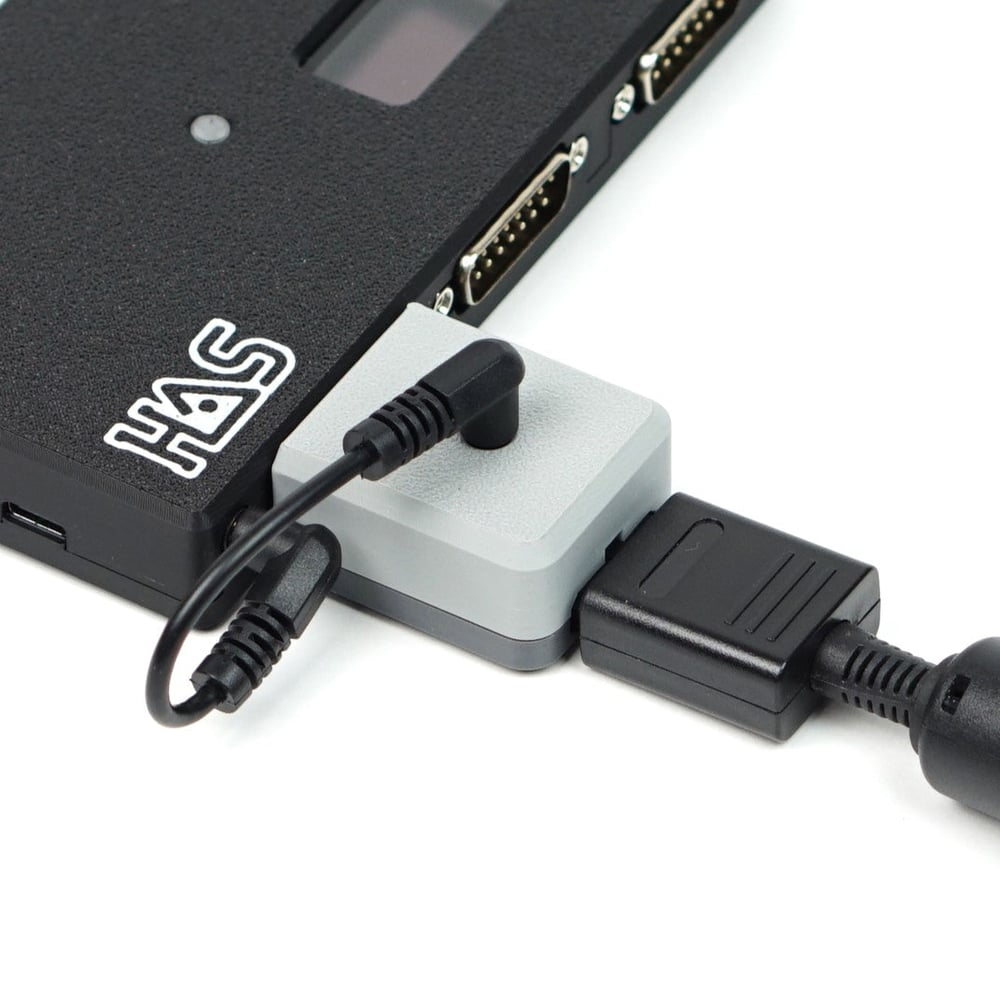

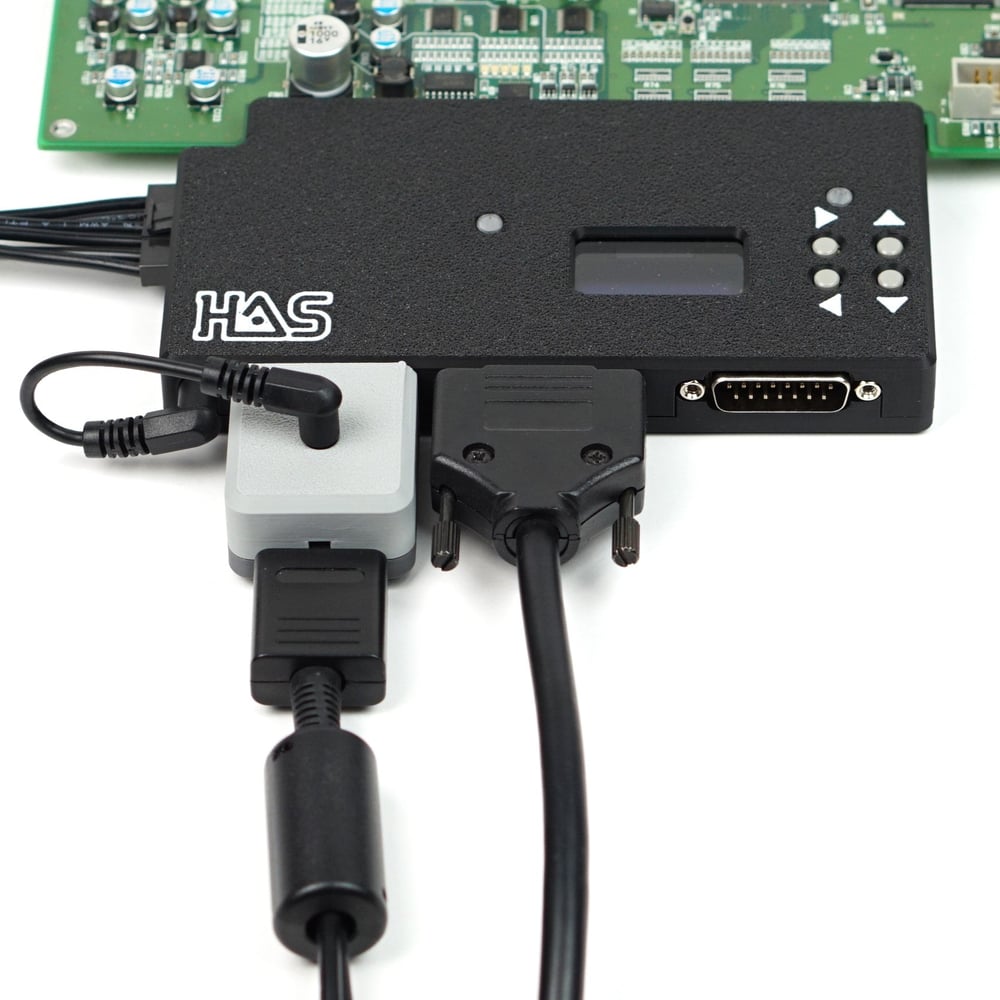

NOTE: The HAS, the PCB game, cables, and accessories visible in the photo present a setup example and are not included and shown for illustrative purposes only.
